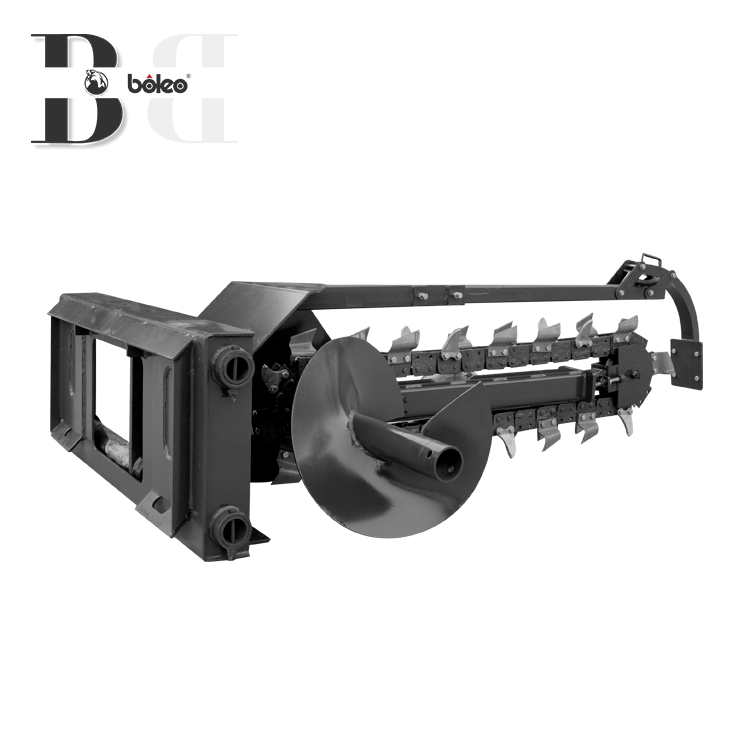

Boleo ® Trencher incorporates Hardox® steel tines to provide a multi purpose attachment suitable for a variety of applications. Used by rental yards, contractors, and developers to dig trenches for water, electrical, drainage, or footings in many different soil conditions. The Eaton drive motor mounts to an industry-leading planetary drive that provides the high torque to the digging chain.
● Universal Mounting Quick Attach, included to suit your machine
● High Designed to quickly and reliably dig trenches 24, 36, or 48 inches deep
● Tines manufactured from Hardox steel; 3 times the strength of mild steel
● 6”, 8” and 10” chain widths available.
● USA made Eaton® direct drive motor (optional) ensures optimum performance and longevity and allows forward and reverse operation
● Adjustable auger can clears loose soil from the trenching area, it can also be removed if not needed
● Heavy frame construction stands up to everyday rugged use
● Machined and enclosed front bearings are protected against dirt and offer extended life
● Available colours
| MODELS | DIGGING DEPTH @ 65° | HYDRAULIC FLOW RANGE | OPERATING WEIGHT | |||
| U.S. | METRIC | U.S. | METRIC | U.S. | METRIC | |
| BTR24 | 24 in | 600 | 21-29 gpm | 80-110 L/Min | 1,014 lbs | 460 kgs |
| BTR36 | 36 in | 915 | 21-29 gpm | 80-110 L/Min | 1,202 lbs | 545 kgs |
| BTR48 | 48 in | 1,220 | 21-29 gpm | 80-110 L/Min | 1,301 lbs | 590 kgs |
Boleo Skid-steer attachments are compatible with most skid-steer brands, so many of our customers can use their existing machines to get the job done.
Compatible brands include but are not limited to: John Deere | Bobcat | JCB | Caterpillar | Gehl | Kubota | CASE | Mustang | New Holland | Wacker Neuson | Terex
Q1 Are skid steer trenchers high flow?
A1 The Auger Torque XHD Range of Trenchers is designed for Excavators between 5T-10T, High Flow Skid Steer Loaders and Backhoes. With only the highest quality hydraulic motors and using Auger Torque's own planetary gearbox, our trenchers have the reliability and power to ensure your trenching is carried out with ease.
Q2 How deep can a skid steer trencher dig?
A2 For example, on some of Bobcat's smaller machines, you can use a backhoe that digs to a depth of 6 feet with a skid steer as narrow as 36 inches.
For more information about product compatibility, please contact our specialists: sales@boleomfg.com
