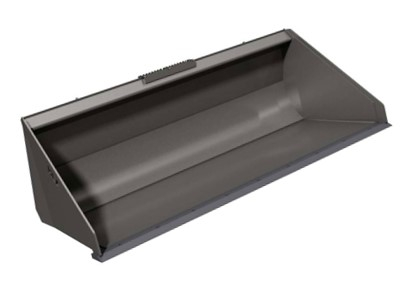

Boleo ® Standard Bucket offers great durability and reliability, great for moving large volumes of loose material, including snow, and for cleaning bedding and manure removal in stalls or barns on the farm or at event facilities, and all models come as standard with a bolt on, reversible toe plate.
● The universal Quick Hitch mounted bucket can be attached to a wide variety of machines.
● 60", 66'', 72", and 84" Widths available
● Versatile bucket for tough digging to material handling
● Deck material is Grade 50 Plate (345 MPa or 50,000 PSI Minimum Yield Strength), Deflector door standard to control particle size and discharge direction
● Versatile bucket for tough digging to material handling
● Heavy structural steel frame, Reinforced bucket back and sides.
● HARDOX® wear pads available
● Optional Spill guard – see picture**
● Optional teeth**
● Available colours
| MODELS | WORKING WIDTH | STRUCK CAPACITY | HEAP CAPACITY | APPROX. WEIGHT | ||||
| U.S. | METRIC | U.S. | METRIC | U.S. | METRIC | U.S. | METRIC | |
| SB60 | 60 in | 1,550 mm | 14 ft3 | 0.40 m3 | 18 ft3 | 0.5 m3 | 463 lbs | 210 kgs |
| SB66 | 66 in | 1,675 mm | 16 ft3 | 0.45 m3 | 21 ft3 | 0.6 m3 | 485 lbs | 220 kgs |
| SB72 | 72 in | 1,850 mm | 18 ft3 | 0.50 m3 | 25 ft3 | 0.7 m3 | 573 lbs | 260 kgs |
| SB84 | 84 in | 2,100 mm | 21 ft3 | 0.60 m3 | 28 ft3 | 0.8 m3 | 661 lbs | 300 kgs |
** Standard with Spill Guard or Standard with Teeth for your more options
Boleo Skid-steer attachments are compatible with most skid-steer brands, so many of our customers can use their existing machines to get the job done.
Compatible brands include but are not limited to: John Deere | Bobcat | JCB | Caterpillar | Gehl | Kubota | CASE | Mustang | New Holland | Wacker Neuson | Terex
FAQ
Q1 Are all skid steer buckets universal?
A1 Not all skid steer attachments are universal, but your skid steer will likely be able to mount most – if not all – attachments you require. You should have a conversation with the supplier of your skid steer and its attachments to come to a conclusion as to whether they will work together.
Q2 How much volume is a skid steer bucket?
A2 The bucket provides a high-volume struck capacity of 29.7 cubic feet, which offers fewer trips due to the high-volume capacity. UNIVERSAL SKID STEER CONNECTION: Our superior design allows this skid steer bucket to fit with almost all skid steers, loaders, and tractors.
For more information about product compatibility, please contact our specialists: sales@boleomfg.com
