| Quantity: | |
|---|---|

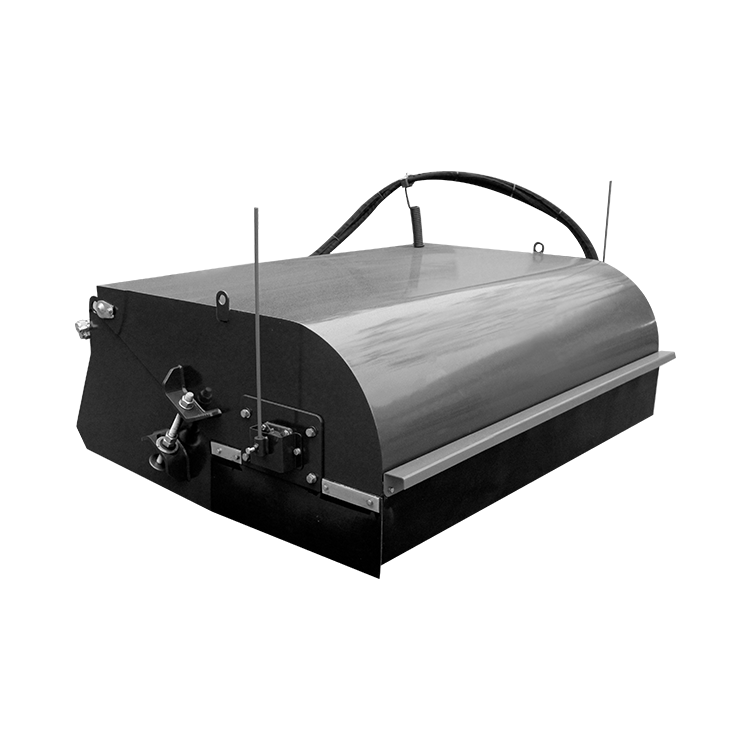

Boleo ® Pick-up Broom handles heavy duty clean-up in construction, municipal and industrial applications. It features a reinforced Polypropylene bristles, a heavier duty cutting edge, additional welds between the cutting edge bolts, This is a bi-directional broom that sweeps forward to pick up dirt in tight areas. The direct-drive bush motor eliminates chains and sprockets, the high strength bucket and intelligent design ensure many years of performance.
● Universal Mounting Quick Attach, included to suit your machine
● Direct drive Eaton® motor(optional), high strength bucket and intelligent design ensure many years of performance,with relief valve protection, ensuring long hydraulic life
● 15-24 GPM flow, All Polypropylene bristles
● Deck material is Grade 50 Plate (345 MPa or 50,000 PSI Minimum Yield Strength), deck steel with a formed edge fold for additional strength.
● Heavy-duty bucket design
● Bi-directional broom sweeps forward to pick up dirt, rock and construction debris
● To dump, lift and tilt, no chains required
● No front caster wheel, works next to walls, curbs and obstacles
● Motor is guarded (Motor shroud) while allowing easy access for maintenance
● Replaceable bolt-on cutting edge on bucket
● Direct-drive brush motor eliminates chains and sprockets
● Available colours
| MODELS | SWEEPING WIDTH | BRUSH DIAMETER | FLOW RATE | APPROX. WEIGHT | ||||
| U.S. | METRIC | U.S. | METRIC | U.S. | METRIC | U.S. | METRIC | |
| SST-RS02A | 60 in | 1,530 mm | 26 in | 660 mm | 15 - 22 gpm | 60 - 80 L/min | 1,014 lbs | 460 kgs |
| SST-RS02B | 72 in | 1,830 mm | 26 in | 660 mm | 15 - 22 gpm | 60 - 80 L/min | 1,069 lbs | 485 kgs |
| SST-RS02C | 84 in | 2,130 mm | 26 in | 660 mm | 22 - 24 gpm | 80 - 90 L/min | 1,213 lbs | 550 kgs |
Boleo Skid-steer attachments are compatible with most skid-steer brands, so many of our customers can use their existing machines to get the job done.
Compatible brands include but are not limited to: John Deere | Bobcat | JCB | Caterpillar | Gehl | Kubota | CASE | Mustang | New Holland | Wacker Neuson | Terex
Q1 How do you dump a skid steer sweeper?
A1 Lift the attachment off the ground. Tilt the sweeper attachment forward until it is empty. The broom can be rotated to help empty the attachment. Note Lift Restriction Warning above before dumping or lifting.
Q2 What is a pickup broom?
A2 Pickup Brooms collect dirt and debris from a variety of surfaces.
For more information about product compatibility, please contact our specialists: sales@boleomfg.com
