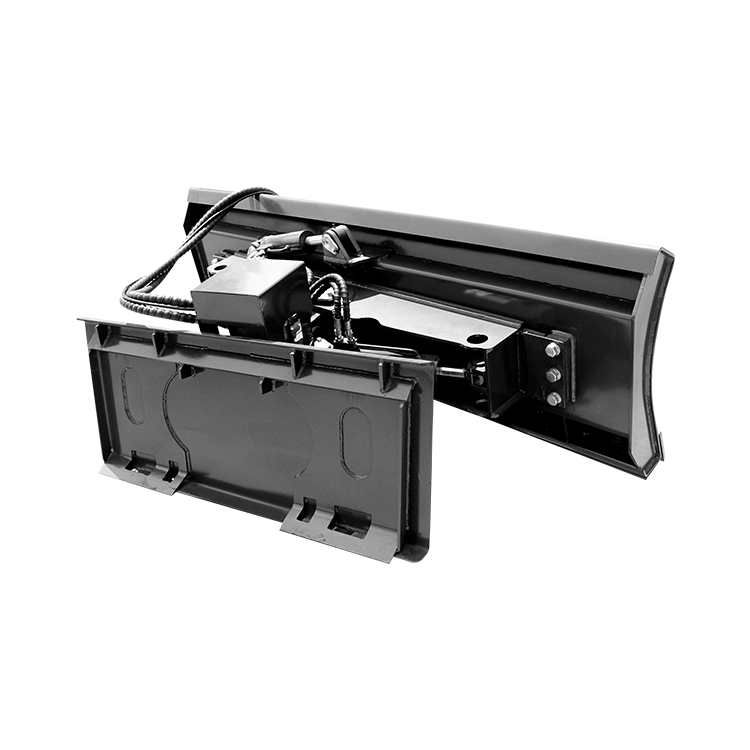

Boleo ® 6-Way Dozer Blade offers great durability and reliability, provides the performance, uptime and confidence required for more precise grading, leveling and trenching. This means you get to the next job quicker!
● Universal Mounting Quick Attach, included to suit your machine
● 6-ways hydraulic adjustments provides for quick and easy blade positioning to meet operator needs
● Equipped with heavy duty Hardox® steel Cutting wear edge, ensuring the Cutting wear edge and allowing for aggressive cuts at maximum Cutting engagement
● Deck material is Grade 50 Plate (345 MPa or 50,000 PSI Minimum Yield Strength), deck steel with a formed edge fold for additional strength.
● Heavy-duty blade design
● 2-Piece reversible and replaceable cutting edge so that the end user can replace the entire cutting edge to reduce maintenance cost.
● Double acting welded hydraulic cylinders enables angling up to 30 degrees left or right, and tilts 10 degrees up or down. The material can easily be distributed where you want it to go.
● Reinforced moldboard with fully boxed bracing provides added strength and durability
● Choice of 60'' , 72'', 84" or 96" working widths
● Replaceable bolt-on cutting edge on bucket
● Available colours
| MODELS | CUTTING WIDTH | Max. Blade Angle | Max. Blade Tilt | WORKING PRESSURE | WEIGHT | |||
| U.S. | METRIC | U.S. | METRIC | U.S. | METRIC | |||
| BDB60 | 60 in | 1,530 mm | 30º L & 30º R | 10º up or down | 2,320 - 3,045 psi | 16 - 21 Mpa | 1,124 lbs | 510 kgs |
| BDB72 | 72 in | 1,830 mm | 30º L & 30º R | 10º up or down | 2,320 - 3,045 psi | 16 - 21 Mpa | 1,234 lbs | 560 kgs |
| BDB84 | 84 in | 2,130 mm | 30º L & 30º R | 10º up or down | 2,320 - 3,045 psi | 16 - 21 Mpa | 1,345 lbs | 610 kgs |
| BDB96 | 96 in | 2,440 mm | 30º L & 30º R | 10º up or down | 2,320 - 3,045 psi | 16 - 21 Mpa | 1,455 lbs | 660 kgs |
Boleo Skid-steer attachments are compatible with most skid-steer brands, so many of our customers can use their existing machines to get the job done.
Compatible brands include but are not limited to: John Deere | Bobcat | JCB | Caterpillar | Gehl | Kubota | CASE | Mustang | New Holland | Wacker Neuson | Terex
FAQ
Q1 What is a 6 way blade on a dozer?
A1 Most dozer blades are either four- or six-way styles. ... A six-way blade also moves up and down and angles left and right, but unlike the four-way, each side also tilts up or down. In other words, an operator can raise either side of the blade higher than the other.
Q2 What is a dozer blade used for?
A2 The blade is the heavy metal plate located at the front of the bulldozer that is used to push and dig through materials.
For more information about product compatibility, please contact our specialists: sales@boleomfg.com
